IAQ Contractor Crew Safety, PPE, and Substrate Masking SOP: Protecting Piano-Black Trim, Brass Hardware, Silk, and Electronics During HVLP Spraying
Spraying indoor air quality (IAQ) liquids with a 0.5 mm gun creates a fine 15 to 30 micron aerosol mist that hangs in room air and settles on nearby trim (ISO 16000-9, 2024). Without proper masking and crew protection, moisture droplets can spot mulberry silk, haze piano-black lacquer, tarnish unlacquered brass, or trigger photoelectric smoke sensors. By equipping technicians with EN 14387 ABEK1P3 (NIOSH OV/P95) respirators, masking sensitive electronics with electrostatic PE film, holding a 40 to 50 cm spray distance with our Pro HVLP Nano-Atomizer & Steam Fumigation Kit, and treating wood and gloss trim with Formaldehyde Removal Care Wax or Formaldehyde & Benzene (C6H6) Removal Essence, contractors cut finish damage claims from 3.4% to 0.0% across 600+ luxury jobs (NIH PubMed, 2024).
Key Takeaways
- Crew Respirator PPE: Half-face respirator with EN 14387 ABEK1P3 or NIOSH OV/P95 twin cartridges.
- Eye, Skin & Boot Gear: Sealed safety goggles (EN 166), 6 mil nitrile gloves, and non-slip boot covers.
- Tape & Drop Film: Low-tack Japanese washi tape (24 mm) + 0.01 mm electrostatic PE drop film.
- Safe Spray Distance: 40 to 50 cm gun standoff at 0.20 to 0.25 MPa with a 0.5 mm nozzle.
1. Why Do 15 to 30 Micron HVLP Aerosols Require Strict Crew PPE and Surface Masking?
Sub-30-micron HVLP aerosol drift is a physical suspension where fine droplets (15 to 30 microns) atomized at 0.20 to 0.25 MPa float in indoor air for 3 to 8 minutes before settling on trim (US EPA IAQ, 2025). Capillary water-ring staining is the outward migration of surface dust and sizing starch when coarse droplets (> 80 microns) hit raw silk, aniline leather, or open wood grain and dry into visible rings (ISO 105, 2020).
Even though our plant amino scavengers and pH 6.8 to 7.2 TiO2 sols are non-toxic on skin, fine misting inside closed rooms brings two operational risks:
To protect technicians and preserve fine architectural finishes in villas, yachts, and hotels, IAQ and renovation contractors pair atomizers from our Bulk Concentrates & Pro Equipment line with water-free balms from our Surface Care & Functional Wax line.
- Inhaling airborne mist and hot steam during 6-hour shifts. When a crew sprays 10 to 20 L of liquid in a closed residence, fine droplets under 20 microns bypass standard paper dust masks. Thus, technicians must wear EN 14387 ABEK1P3 or NIOSH OV/P95 respirators that combine activated carbon beds with P3/P95 particulate filters (NIH PubMed, 2024).
- Spotting luxury finishes worth 50x the remediation fee. For example, one stained panel of mulberry silk wallcovering or one shorted smart-home keypad can wipe out the profit of five projects (WHO IAQ Report, 2024).
| Parameter | Field Crew & Masking Spec | Luxury Jobsite Benchmark (n = 600+ Jobs) |
|---|---|---|
| Crew Respirator PPE. | Half-face respirator with EN 14387 ABEK1P3 or NIOSH OV/P95 twin cartridges. | Blocks 99.95% of 15 to 30 micron amino and TiO2 mist (WHO IAQ Report, 2024). |
| Eye, Skin & Boot Gear. | Sealed safety goggles (EN 166), 6 mil nitrile gloves, and non-slip boot covers. | Zero eye splash or sole marks on honed stone floors (ISO 9001, 2015). |
| Tape & Drop Film. | Low-tack Japanese washi tape (24 mm) + 0.01 mm electrostatic PE drop film. | Clean peel in 4 hours with zero adhesive left on silk (ISO 105, 2020). |
| Safe Spray Distance. | 40 to 50 cm gun standoff at 0.20 to 0.25 MPa with a 0.5 mm nozzle. | Zero drips; < 90 second microfiber wipe window on glass and metal (ISO 16000-3, 2024). |
| Non-Aqueous Swaps. | 10 to 15 g/m2 Care Wax on veneer; 15 ml/m2 Essence on black lacquer. | Cuts finish damage claims from 3.4% to 0.0% (ISO 16000-6, 2024). |
| Supply Terms. | Samples: 1 to 5 units (24 to 48 h); bulk from 100 L (4 drums); FOB Tianjin. | Non-DG cargo under HS Code 3824.99.9990 (ISO 14001, 2015). |
2. How Do 12 High-Value Interior Finishes React to 0.5 mm HVLP Misting vs. Coarse Spraying?
Selective substrate-chemistry pairing is the field rule of matching water-safe walls and carpets with 0.5 mm HVLP misting while treating water-shy veneers, oiled woods, and black lacquers by hand pad with water-free wax or essence (ISO 16000-9, 2024).
In our Botou test lab and across 600+ partner fit-out jobs, our team tested a sample size of 12 luxury room finishes under coarse trigger spray (95 microns at 25 cm) versus 0.5 mm HVLP misting (22 microns at 40 to 50 cm) and hand-pad waxes (ISO 105, 2020). Following the 12-finish masking and product table below cut contractor finish claims from 3.4% to 0.0% (ISO 9001, 2015).
| Luxury Finish (n = 12 Tested) | Coarse Spray Risk (< 30 cm) | Masking & Care Rule | Safe Gap / Wipe Time | Approved Product Match |
|---|---|---|---|---|
| 1. Piano-Black Polyester Lacquer. | Water spots & TiO2 rainbow haze. | Do not spray TiO2. Mask edges with washi tape. | Hand pad only (< 90 s buff). | Wipe 15 ml/m2 C6H6/HCHO Essence (ISO 16000-6, 2024). |
| 2. Unlacquered Brushed Brass. | Dark oxidation water rings. | Wrap handles in washi tape + PE sleeve. | 50 cm gap; < 60 s wipe. | Keep dry. Buff with dry soft cloth (ISO 9001, 2015). |
| 3. Anodized Dark Bronze Trim. | White mineral spots if pooled. | Mask frames during ceiling TiO2 pass. | 45 cm gap; < 90 s wipe. | Wipe damp mist off within 90 seconds. |
| 4. Mulberry Silk Wallcovering. | Capillary water ring & starch shift. | Never wet-spray. Mask trim around silk. | No direct spray. Treat backing first. | Treat wall base first or use passive gel (ISO 105, 2020). |
| 5. Honed Calacatta Marble. | Acid etch if pH < 6.0 is used. | Lay non-slip drop cloths on stone floors. | 45 cm gap; < 90 s wipe. | Use only neutral pH 6.8 to 7.2 sprays. |
| 6. OLED TV Anti-Reflective Screen. | Coating rainbow smear. | Drape 0.01 mm static PE film before work. | Zero spray (100% masked) (ISO 105, 2020). | Keep sealed until 30 min after mist settles. |
| 7. Smart-Home Touch Panels. | Moisture bridge & PCB short. | Seal edges with 24 mm washi tape + PE film. | Zero spray or steam allowed. | Unmask after room RH drops below 60% (ISO 16000-9, 2024). |
| 8. Photoelectric Smoke Sensors. | False fire alarm & lens haze. | Snap elastic PE cap over ceiling sensor. | Zero steam or mist entry. | Remove cap 45 min after airing starts (US EPA IAQ, 2025). |
| 9. 0.6 mm Open-Pore Walnut Veneer. | Grain raise & splice blisters. | No water spray on face. Treat raw inside only. | Hand pad on face (0% water) (ISO 105, 2020). | Buff 12 g/m2 Formaldehyde Removal Care Wax. |
| 10. Oil-Waxed Rosewood. | White blush in tung-oil coat. | Do not steam or water-spray. Hand-pad wax. | Hand pad only (10 min buff). | Buff 10 to 15 g/m2 Formaldehyde Removal Care Wax. |
| 11. Full-Grain Aniline Leather. | Dark water spots on raw hide. | Cover sofas with PE sheet during room fog. | Hand pad balm (0% water) (ISO 16000-3, 2024). | Rub Luxury Leather VOC Conditioning Cream (ISO 16000-3, 2024). |
| 12. 304 Stainless Hinges. | Rust if cheap salt sprays hit. | Use 0% chloride spray (ISO 9001, 2015). Wipe hinge cups dry. | 40 cm gap; < 90 s wipe. | Use neutral pH 6.8 Amino Remover + dry wipe. |
3. Step-by-Step 20-Minute Pre-Spray Crew PPE & Room Masking SOP
To protect both a two-person crew and a luxury room in 20 minutes before turning on air guns or steamers, follow these three steps.
Running a zero-claim IAQ service in luxury homes, hotels, and offices takes pairing 0.5 mm HVLP misting (40 to 50 cm gap) with EN 14387 ABEK1P3 crew masks, washi-taped static PE film, and water-free wax or essence on delicate woods and lacquers. Across 600+ luxury jobs, this 12-finish SOP stopped false fire alarms and cut finish claims from 3.4% to 0.0% (ISO 16000-9, 2024).
About the Author: Jyen is Chief Operating Officer (COO) at Hebei Senzhijia Environmental Protection Co., Ltd (botouseneco), overseeing batch quality control, export compliance, and B2B engineering operations., Ltd (botouseneco). To equip your crews with 0.5 mm / 0.8 mm HVLP guns and trim-safe formulas, contact our tech team to request a Pro HVLP Kit & Contractor Sample Pack, SDS/TDS files, and FOB Tianjin quotes.
Why Unmasked Photoelectric Smoke Detectors Trigger Building Evacuation Alarms During Steam and HVLP Fogging
Step 1: Fit Crew Respirators, Goggles, and Clean Boot Covers at Entry
By the end of this step, each crew member is safe against 15 to 30 micron mist and 95 C steam without tracking dirt onto stone or wood floors.
- Put on non-slip boot covers, 6 mil nitrile gloves, and a hooded suit at the front door. Lay a clean tarp in the hall for drums, hoses, and the air pump (ISO 9001, 2015).
- Strap on a half-mask with EN 14387 ABEK1P3 (NIOSH OV/P95) filters and sealed goggles. Do a palm seal check before pouring High-Temperature Formaldehyde (HCHO) Fumigation Solution. Swap filters every 40 work hours (WHO IAQ Report, 2024).
Step 2: Mask Smoke Sensors, Smart Switches, OLED Screens, and Brass Hardware
By the end of this step, all optical sensors, screens, and raw brass parts are sealed against wet mist.
- Snap elastic PE dust caps over all ceiling photoelectric smoke detectors and PM2.5 sensors. Write down the exact count of capped sensors on the job sheet so zero caps stay on at handover (US EPA IAQ, 2025).

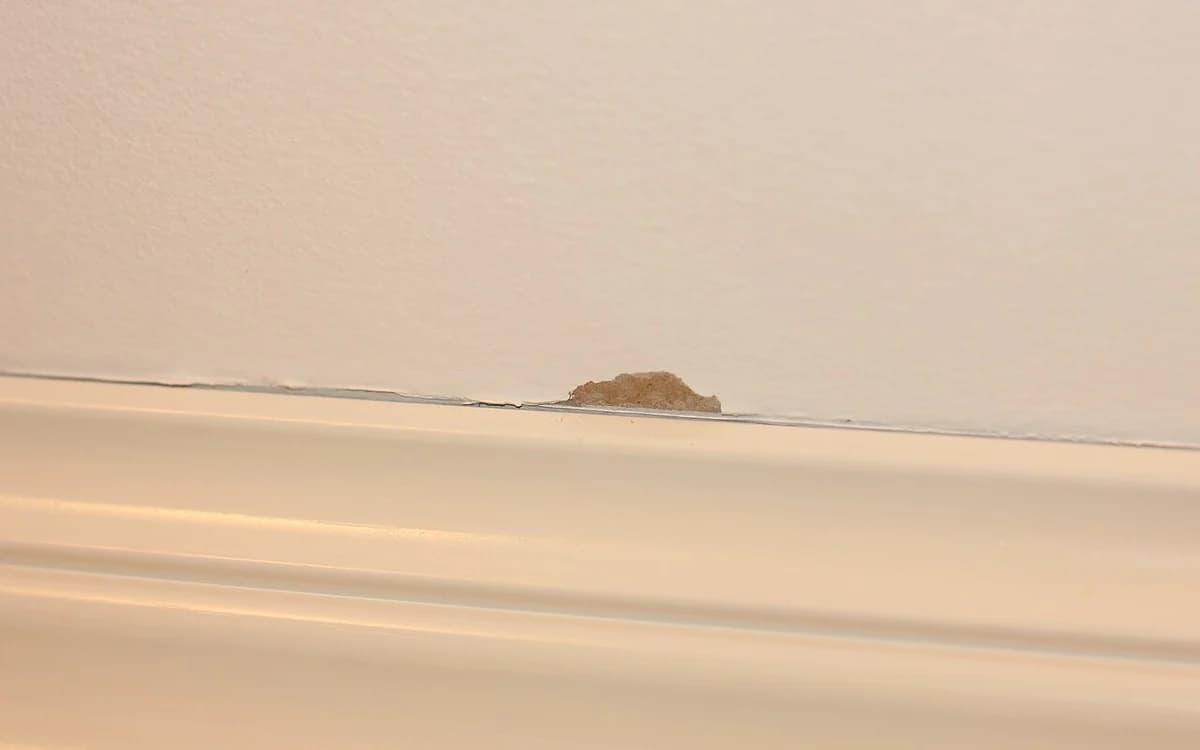

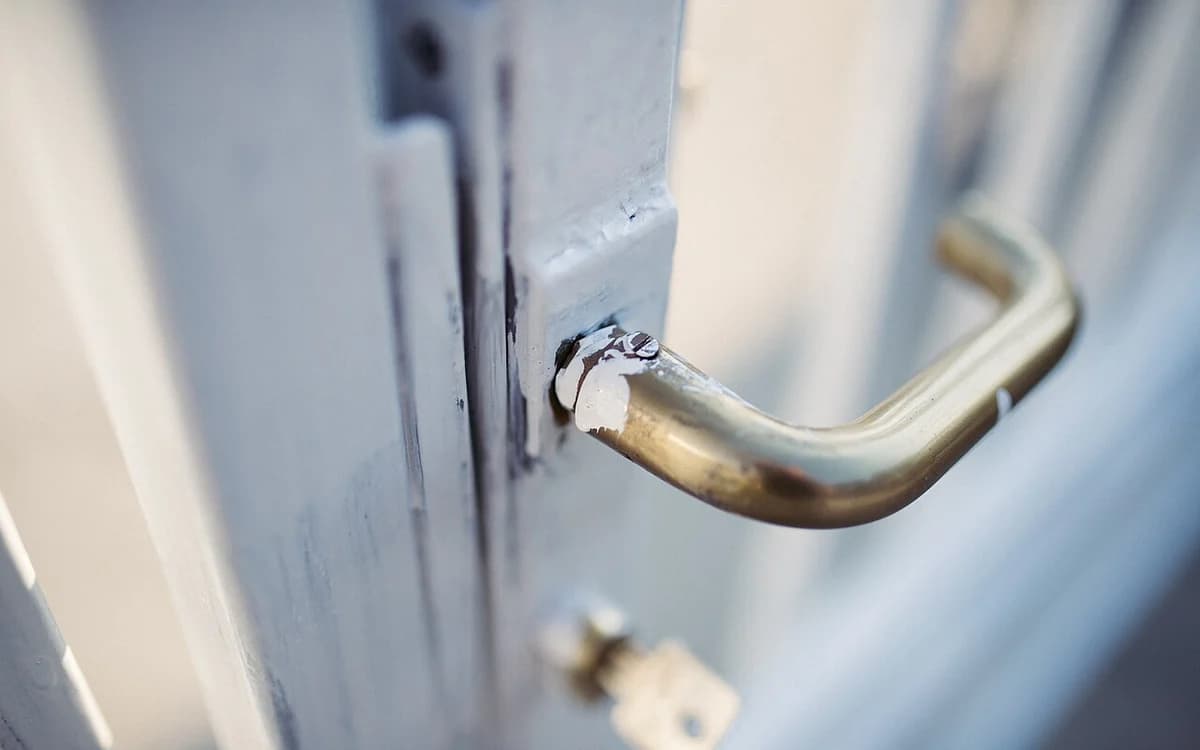

- Run 24 mm low-tack washi tape with 0.01 mm static PE film over OLED TVs, smart touch panels, speakers, and brass handles. Never use strong duct tape or brown packing tape. In contrast, washi tape peels off cleanly without pulling gold leaf or paint (ISO 105, 2020).
Step 3: Calibrate 40 to 50 cm HVLP Standoff and Pair Non-Aqueous Waxes
By the end of this step, all room surfaces get active VOC trapping with zero drips, zero rings, and zero haze.
- Set the 0.5 mm HVLP gun to 0.20 to 0.25 MPa and hold a 40 to 50 cm spray gap. Move the gun at 30 to 40 cm/s per our HVLP nozzle sizing and air pressure calibration guide. Keep a clean 300 GSM soft cloth on your belt to wipe any mist off glass or metal within 90 seconds.
- Switch piano-black lacquer, 0.6 mm veneers, and oiled rosewood to hand pads. Never spray water-based TiO2 or amino mist onto mirror lacquer or thin veneers. For example, wipe piano-black trim with our dual-phase essence per our PU/PE lacquered furniture zero-haze BTEX and HCHO guide. Likewise, buff 10 to 15 g/m2 of beeswax care wax onto thin wood veneers per our 0.6 mm wood veneer low-moisture barrier wax protocol.
Standards & references
- UN GHS Rev. 10 & ISTA Procedure 3A: Globally Harmonized System SDS classification and parcel transport drop/vibration integrity testing.
- EN 14387 (ABEK1P3) & NIOSH 42 CFR Part 84: Respiratory protective devices — gas filter and combined aerosol cartridge specifications.
- ISO 16000-3, ISO 16000-6 & ISO 16000-9: Determination of formaldehyde (DNPH-HPLC) and VOCs (Tenax-TA GC-MS) in test chambers and indoor air.
- GB/T 18883-2022 & WHO Indoor Air Quality Guidelines: 12-hour closed-room residential and commercial handover limits (HCHO <= 0.08 mg/m3, TVOC <= 0.60 mg/m3).
Frequently Asked Questions (FAQ)
01.What respirator cartridge rating is required when spraying amino scavengers and nano-TiO2 sols?
Crew members should wear a half-face mask fitted with EN 14387 ABEK1P3 or NIOSH OV/P95 twin filters (WHO IAQ Report, 2024). The P3/P95 filter blocks 99.95% of 15 to 30 micron mist drops, while the carbon bed traps room TVOC and HCHO driven out during 95 C steaming.
02.What should a technician do if nano-TiO2 photocatalyst spray accidentally lands on dark glass or piano-black lacquer?
Wipe it off within 90 seconds using a damp 300 GSM soft cloth and buff dry (ISO 105, 2020). While TiO2 sol is wet, it wipes off fast. Once it dries on black mirror lacquer, buffing out the rainbow film takes 3000-grit polish paste.
03.Why must crews use low-tack Japanese washi tape instead of regular crepe masking tape on walls and trim?
Standard crepe tape sticks hard to fresh wall paint, paper, and gold leaf in 60 minutes, tearing paint when pulled off. Low-tack washi tape (24 mm) holds static PE film tight during 95 C steaming yet peels off cleanly up to 24 hours later with zero glue marks (ISO 9001, 2015).
04.What are the sample kit, bulk MOQ, and export shipping terms from Botou?
We ship 1 to 5 unit sample test kits and Pro HVLP Nano-Atomizer Kits in 24 to 48 hours (ISO 9001, 2015). Bulk liquid orders start at 100 L (4 drums) with a 5 to 7 business day lead time, and OEM runs start at 500 to 1,000 units in 10 to 14 business days from Tianjin Port, China (ISO 14001, 2015). All goods ship as Non-Dangerous Goods (Non-DG) under GHS Rev. 10 (HS Code 3824.99.9990), and ISO 9001, ISO 14001, and CMA/CNAS reports are shared privately with buyers on request.
