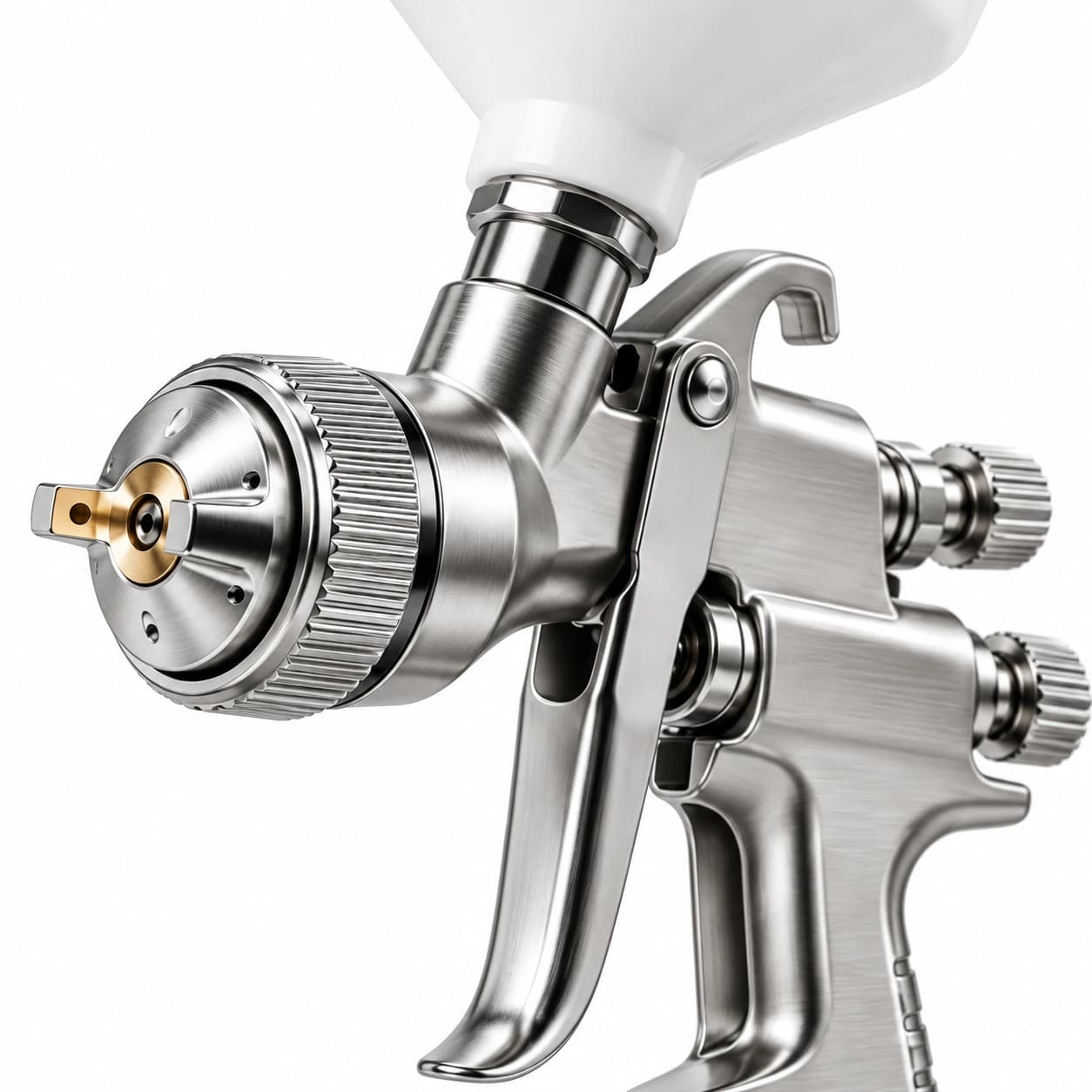

True 0.5mm + 0.8mm Dual Guns
Includes two dedicated 316 stainless-steel fluid-passage HVLP guns to prevent chemical cross-reaction and wall spotting.
01 / 05 · Studio PackshotPro HVLP Nano-Atomizer & Steam Fumigation Kit
Contractor Hardware & SOP Equipment Bundle
botouseneco Pro HVLP Nano-Atomizer & Steam Fumigation Kit is a commercial IAQ contractor hardware bundle engineered specifically to match the viscosity and particle-size requirements of our 3-Stage Remediation Protocol. It pairs a 0.5mm/0.8mm dual-nozzle stainless-steel HVLP fine-mist spray gun with a 2600W instant high-temperature (95°C) steam fumigator—enabling new IAQ teams to launch turnkey operations.
- 5–15 µm Precision Photocatalyst Atomization
- 60–95°C Thermal Cabinet Resin Extraction
- Turnkey IAQ Franchise & Contractor Deployment
- Dosage
- Calibrated for 8 – 25 ml/m² precision flow without wall runs or nozzle spitting
- Method

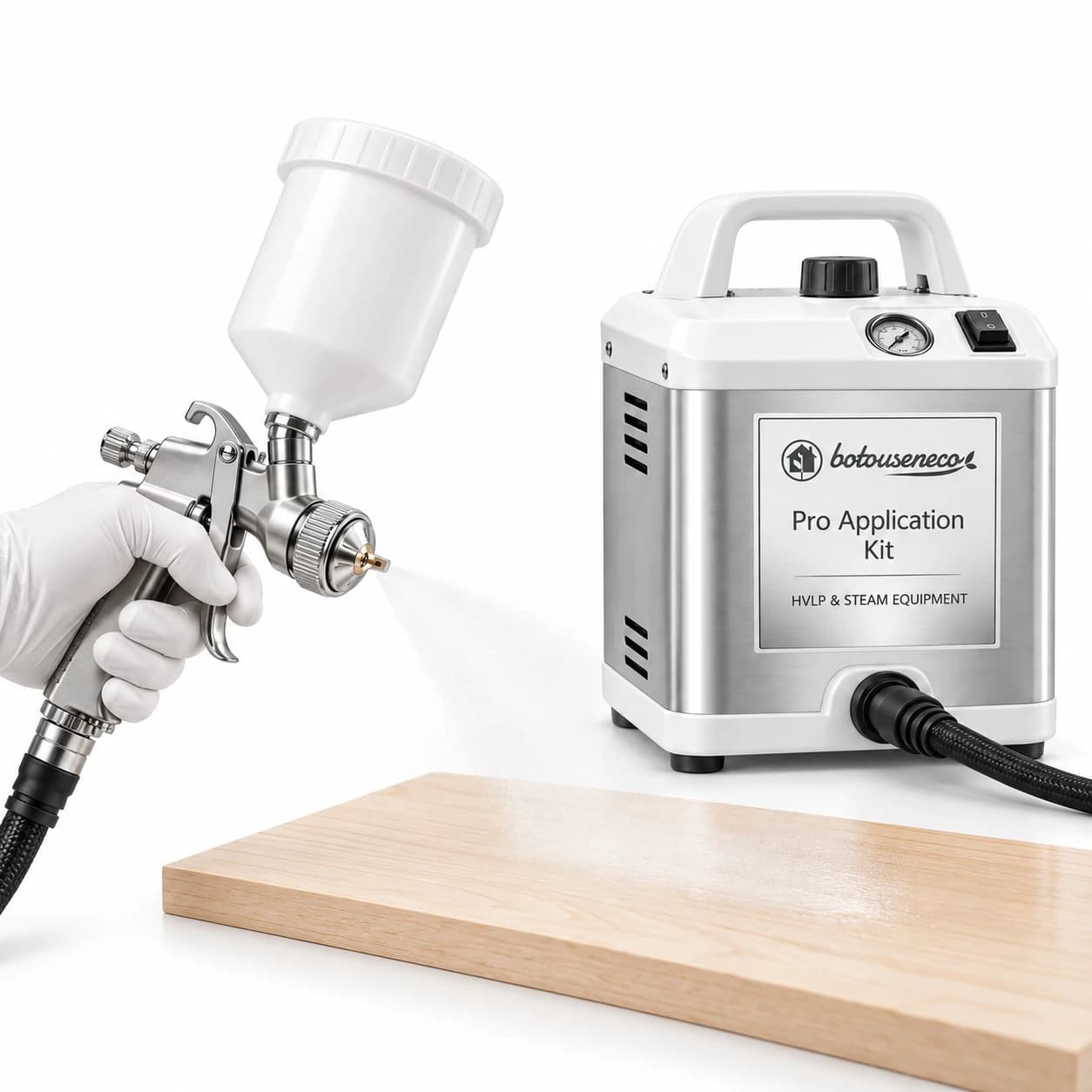

- Connect 0.5mm/0.8mm HVLP gun to oil-free compressor (0.25 MPa); run 2600W steamer on panels
- Pack formats

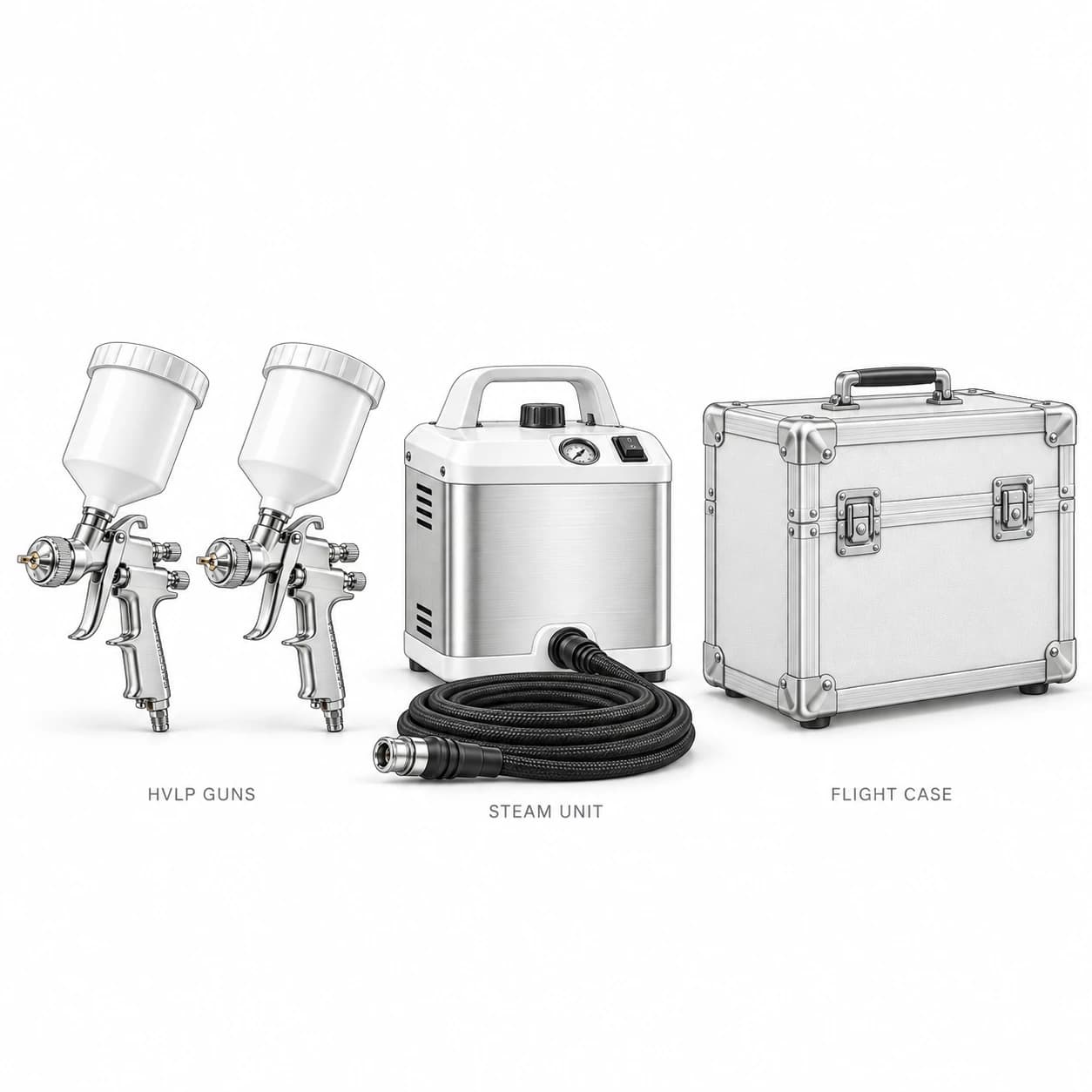

- Heavy-Duty Flight Case: 2 × HVLP Guns (0.5mm & 0.8mm), 2600W Steamer, Hoses & PPE
Last updated
- True 0.5mm + 0.8mm Dual Guns
- 0.5mm + 0.8mm Tips
- 2600W Continuous-Feed Steamer
- 95°C Instant Steam
- 30% Solution Consumption Savings
- 30% Less Waste
- 110V / 220V Global Export Ready
- 110V / 220V CE
01Overview
What Pro HVLP & Steam Application Kit does.
Even the best cleaning formulation fails if applied with a dripping garden sprayer—equip your crew with calibrated 0.5mm–0.8mm hardware.
Fifty percent of on-site indoor air remediation quality depends on atomization hardware. Using coarse hardware-store paint guns (>1.5mm nozzle) wastes solution volume, causes visible runs on painted drywall, and ruins the optical transparency of nano-TiO₂ photocatalyst films. Conversely, low-wattage household garment steamers cannot sustain the 80°C–95°C continuous steam output needed to heat dense MDF wardrobes. botouseneco Pro HVLP Nano-Atomizer & Steam Fumigation Kit bundles our field-proven 316 stainless-steel 0.5mm/0.8mm HVLP spray gun set with a commercial 2600W continuous-feed thermal steam fumigation unit.
2600W Continuous-Feed Steamer
Draws High-Temperature HCHO Fumigation Solution directly from an external bucket without stopping to depressurize a boiler tank.
30% Solution Consumption Savings
High-transfer-efficiency HVLP air cap reduces overspray bounce-back and cuts liquid waste by up to 30%.
110V / 220V Global Export Ready
Supplied with CE-certified electrical components and regional plug adapters for global contractor teams.
Key attributes
- Brand
- botouseneco
- Product line
- Bulk Concentrates & Pro Equipment
- Technology
- HVLP & steam contractor kit
- Format
- Kit & equipment
- Target pollutants
- Formaldehyde · TVOC
- Applications
- Post-renovation · Commercial & HVAC
- Coverage
- 8–25 ml/m² flow
- Pack range
- Flight case
- Place of origin
- Botou, Hebei, China
- Private label
- Label · bottle · scent · strength
- Samples
- Kit of 1–5 units, ships in 24–48 hours
Reaction mechanism
5–15 Micron Pneumatic Shear Atomization & 95°C Thermal Vapor Transfer
At 0.25 MPa air pressure, the precision-machined 0.5mm HVLP fluid tip shears low-viscosity Nano Photocatalyst Spray into a 5–15 µm dry-mist plume that self-levels into a 50nm uniform film without coalescing into droplets. Simultaneously, the 2600W instant boiler generates 95°C steam within 25 seconds to drive Stage 1 thermal HCHO extraction.
Reaction pathway
0.5mm HVLP Gun + 2600W 95°C Thermal Steamer- Active chemistry
- 0.5mm/0.8mm 316-SS HVLP shear atomization + 2600W 95°C steam extraction
- Class
- Turnkey Contractor Hardware Kit
02Technical data
Technical Specifications
Published factory QC parameters for engineering submittals, tenders and procurement files, grouped the way distributors list them.
Need the signed documents?
English TDS, GHS-format SDS and a batch COA for Pro HVLP & Steam Application Kit.
Request documents| HVLP Spray Guns Included | 1 × 0.5mm TiO₂ Precision Gun + 1 × 0.8mm Scavenger Gun (316 Stainless Steel needles, 600ml cups) |
|---|---|
| Steam Fumigator Specs | 2600W instant heating coil, 85°C–95°C nozzle temp, 3.5 Bar steam pressure, self-priming intake tube |
| Voltage & Plug Options | 220V–240V (50/60Hz) or 110V–120V (60Hz); EU / UK / US / AU plugs |

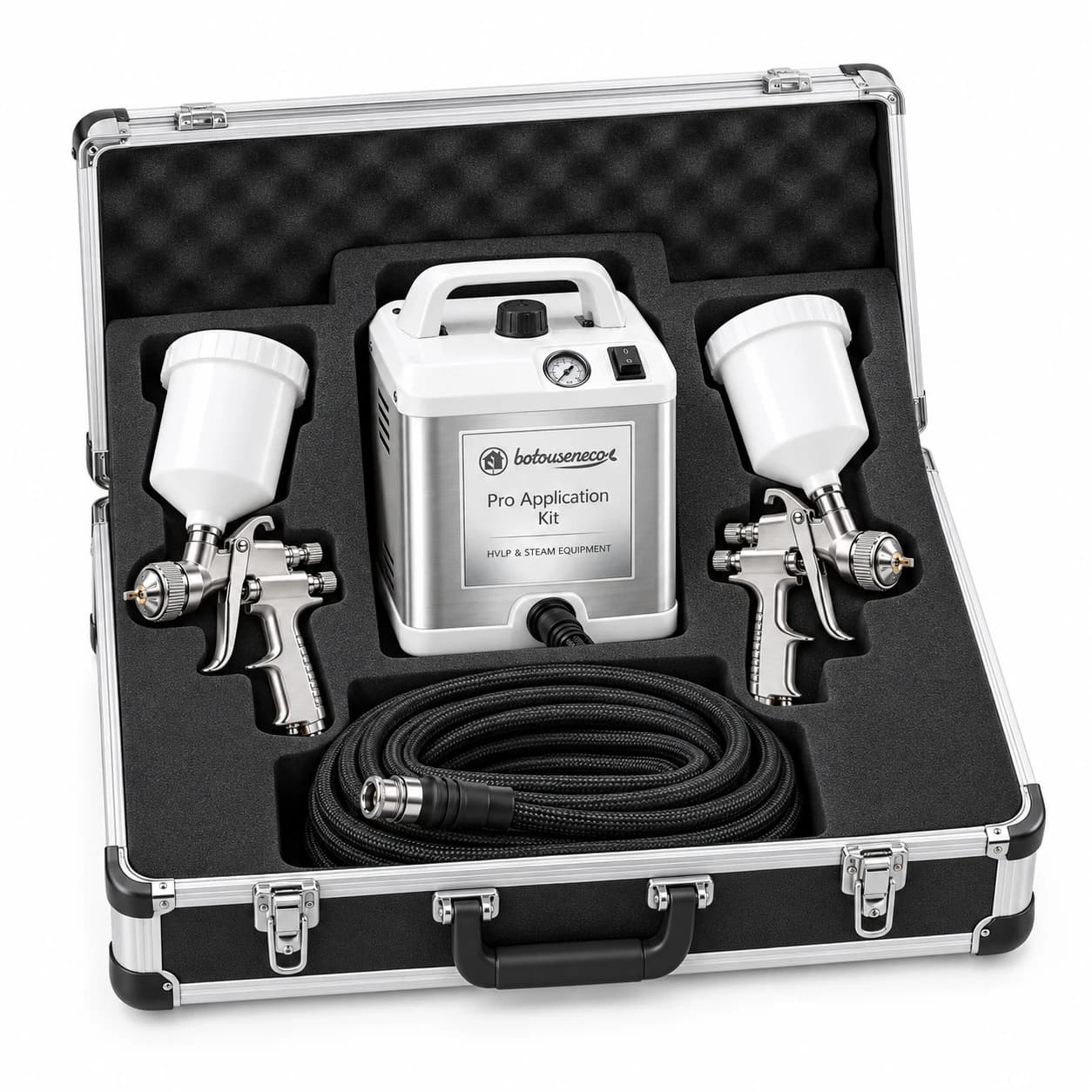

| Case Contents | 2 × HVLP Guns, 1 × 2600W Steamer, 8m PU Air Hose, Pressure Gauge, Cleaning Brush Set |
| Recommended Air Compressor | Pairs with any standard silent oil-free air compressor (0.20 – 0.35 MPa, ≥60 L/min) |
|---|
| Grade | Industrial Contractor Fleet Equipment Grade |
|---|---|
| CAS number(s) | Not applicable (316L Stainless Steel HVLP Atomizer & 2600W Thermal Steam Hardware) |
| Appearance | Precision CNC 316-SS spray guns (0.5/0.8 mm) + thermal steam unit in flight case |
| Odor | Not applicable |
| Density | Net hardware kit weight: 6.8 kg |
| Viscosity | Compatible with fluids from 1.0 to 50 mPa·s |
| Flash point | Not applicable (CE-certified electrical & pneumatic hardware) |
| Solubility | Not applicable |
| VOC content | 0 g/L |
| HS code | 8424.20.0000 |
03Application
Nozzle Selection & Compressor Pressure Protocol
Use the 0.8mm gun for Stage 2 Scavengers and the dedicated 0.5mm gun for Stage 3 TiO₂.
Never cross-contaminate amino scavengers and photocatalysts in the same cup without flushing. Our kit includes two color-coded HVLP guns: Gun A (0.8mm tip) for Formaldehyde/TVOC Scavengers, and Gun B (0.5mm ultra-fine tip) exclusively for Nano Photocatalyst Spray.
- 01
Baseline Concentration & Climate Log
Record initial HCHO/TVOC readings (mg/m³), room temperature (°C), relative humidity (% RH), and closure window (1h vs. 12h).
- 02
Substrate & Resin Identification
Identify whether off-gassing stems from urea-formaldehyde MDF/particleboard, phenolic plywood, solvent lacquers, or textile backings.
- 03
Atomization & Dosage Calculation
Calculate total surface area (m²) of panels, walls, and ceilings to determine exact liquid volume (ml/m²) and nozzle gauge (0.5mm–1.0mm).
- 04
B2B Packaging & Sample Validation
Confirm sample evaluation batch, TDS/MSDS export documentation, and commercial drum sizing (1L / 5L / 20L / 25L / 200L).
Suitable for
- Stage 1 thermal cabinet fumigation
- Stage 2 scavenger spraying
- Stage 3 TiO₂ wall coating
Before you apply
Available in 110V (US/JP) or 220–240V (EU/UK/AU/ASEAN) plug configurations
04Safety, handling & compliance
Handle, store and ship with confidence.
Hazard classification, storage and transport data follow the product's safety data sheet. Request the SDS for the full 16-section document.
Hazard communication (GHS)
- Signal word
- Not applicable (Hardware equipment)
- Pictograms
- Not applicable (Electrical & pneumatic contractor hardware kit)
- Hazard statements
- Electrical and pneumatic equipment kit; no GHS hazard classification applies.
- Precautionary statements
- Operate the 2600W thermal steamer with clean water or approved fumigation solution; avoid skin contact with 95 °C live steam. · Flush the 0.5 mm and 0.8 mm HVLP fluid passages with clean water after each shift.
Handling
Available in 110V (US/JP) or 220–240V (EU/UK/AU/ASEAN) plug configurations
Protective equipment: Heat-resistant gloves when handling the 95 °C steam lance; nitrile gloves, safety glasses and FFP2/N95 mist mask when atomizing treatment liquids.
Storage & shelf life
- Shelf life
- Not applicable (Durable 316L stainless-steel and thermal hardware kit).
- Storage
- Flush and dry fluid passages after use; store inside the flight case in a dry warehouse at 5 °C - 35 °C.
Transport
Non-Dangerous Goods (Non-DG) for sea, air, and road freight (Depressurized, dry electrical and pneumatic hardware kit; contains no lithium batteries).
Certifications
- ISO 9001:2015 Quality Management System
- ISO 14001:2015 Environmental Management
- CMA / CNAS Accredited Chamber Verification
- GHS Rev. 10 / ISO 11014 16-Section SDS Compliant
Certificate copies and full test reports are shared with buyers on request. Request copies · Quality & certifications
Regulatory status
- GB/T 18883-2022 Indoor Air Quality Standard Compliant
- US EPA TSCA Title VI & CARB Phase 2 Compatible
- EU REACH SVHC-Free Formulation
- Non-DG Sea/Air Export Certified
| Test | Standard | Laboratory | Result |
|---|---|---|---|
| Droplet Sizing & Continuous Thermal Steam Output | Laser Diffraction Droplet Sizing & Continuous Thermal Load Test | CMA/CNAS Accredited Environmental Lab & botouseneco QC Center | 5-15 µm uniform mist atomization; 95 °C continuous steam output |
| 316L Stainless-Steel Fluid Passage & Electrical Insulation Check | CE Electrical Safety & Fluid-Passage Corrosion Protocol | botouseneco Botou R&D Lab (Supervised by Jyen) | Pass (110V / 220-240V insulation pass; 0% nozzle or needle corrosion) |
05Ordering & logistics
Formats, terms & private label.
- Heavy-Duty Flight Case: 2 × HVLP Guns (0.5mm & 0.8mm)
- 2600W Steamer
- Hoses & PPE
- Minimum order
- Sample evaluation kit (1-5 units); Bulk wholesale from 100 L / 4 drums; OEM private label from 500-1,000 units.
- Lead time
- Samples: 24-48 hours; Standard bulk drums: 5-7 business days; Custom OEM packaging: 10-14 business days.
- Samples
- Kit of 1–5 units, ships in 24–48 hours · 500 mL / 1 L liquid evaluation bottle or 200 g media sample pack.
- Units per carton
- 1 complete flight-case hardware kit per export carton (2 x HVLP guns, 2600W steamer, hoses & accessories).
- Pallet
- Export palletized flight-case cartons.
- Private label
- Custom flight-case branding, 110V / 220–240V plug configurations and contractor kit bundling
- Trade terms
- EXW Botou · FOB Tianjin · CIF / CFR Global Port
- Port of loading
- Tianjin Port (Xingang), China (~180 km from Botou factory)
06Documents
Technical & safety documents.
Every shipment travels with these documents. Download them here when available, or request the current version from our engineers.
- TDSEncrypted Technical Data Sheet & Specification (Read-Only PDF)Pro HVLP Nano-Atomizer & Steam Fumigation Kit · English · v2026.4 (AES-Protected)
- SDSSafety Data Sheet (16-Section GHS Rev. 10 Format)Pro HVLP Nano-Atomizer & Steam Fumigation Kit · English · v2026.4Request
- COABatch Certificate of Analysis (Lot-Numbered QC Report)Pro HVLP Nano-Atomizer & Steam Fumigation Kit · English · vPer BatchRequest
07Dosage
Estimate the quantity for your project.
Based on the published coverage for Pro HVLP & Steam Application Kit: Calibrated for 8 – 25 ml/m² precision flow without wall runs or nozzle spitting.
Published coverage: Calibrated for 8 – 25 ml/m² precision flow without wall runs or nozzle spitting
Estimated quantity
Dosed per unit
Calibrated for 8 – 25 ml/m² precision flow without wall runs or nozzle spitting
Available formatsHeavy-Duty Flight Case: 2 × HVLP Guns (0.5mm & 0.8mm), 2600W Steamer, Hoses & PPE
Quote this quantityEstimate from the published coverage range. Real consumption depends on substrate porosity, nozzle size and baseline readings — our engineers confirm it with your quote.
08Questions
About Pro HVLP & Steam Application Kit, answered.
01Can we bundle Pro HVLP Nano-Atomizer & Steam Fumigation Kit with an initial pallet of botouseneco cleaners to launch a local IAQ remediation team?
Yes! Most new international partners order 2–4 sets of Pro HVLP Nano-Atomizer & Steam Fumigation Kit alongside their first cleaner shipment so their technicians immediately achieve factory-standard atomization without sourcing tools separately.
