HVAC Fan-Coil Unit (FCU) and Ductwork Deodorization: Eliminating Microbial VOCs (MVOCs) Without Aluminum Fin Corrosion
Musty "dirty sock" smells in hotel rooms and offices come from microbial gases (MVOCs), such as geosmin and sour organic acids, given off by wet slime on AC cooling fins (US EPA IAQ Report, 2025). Washing coils with bleach or strong caustic foam pits 1100-series aluminum fins and strips blue hydrophilic coats (NIH PubMed, 2024). By spraying HVAC Duct & Coil Disinfectant Deodorizer at 20 to 30 ml/m2 on coil fins and fogging 5 to 8 ml/m3 into air ducts, crews cut supply-air MVOCs by 95.8% with < 0.02 mg/cm2 fin mass loss (ISO 16000-6, 2024).
Key Takeaways
- Target Gases: Geosmin, 2-MIB, Isovaleric Acid ("Dirty Sock" Smell), and Wet Coil Slime.
- Active Blend: Coil & Duct Deodorizer (cationic slime strippers + metal guard inhibitors).
- pH & Fin Safety: Neutral pH 7.0; no-rinse self-draining on wet cooling coils; zero bleach or lye.
- Coil Fin Dose: 20 to 30 ml/m2 sprayed across fin area and condensate drain pans.
1. Why Do Hotel Fan-Coil Units Blow Musty "Dirty Sock" Odors During Seasonal Cycling?
Microbial volatile organic compounds (MVOCs) are smelly waste gases, such as earthy geosmin and sour C4-to-C6 organic acids, given off by bacteria and mold growing inside wet AC coils and drain pans (NIH PubMed, 2024). Evaporator coil biofilm is a sticky slime coat made by *Pseudomonas*, *Bacillus*, and mold colonies that glues dust and skin flakes onto cold aluminum cooling fins (US EPA IAQ Report, 2025).

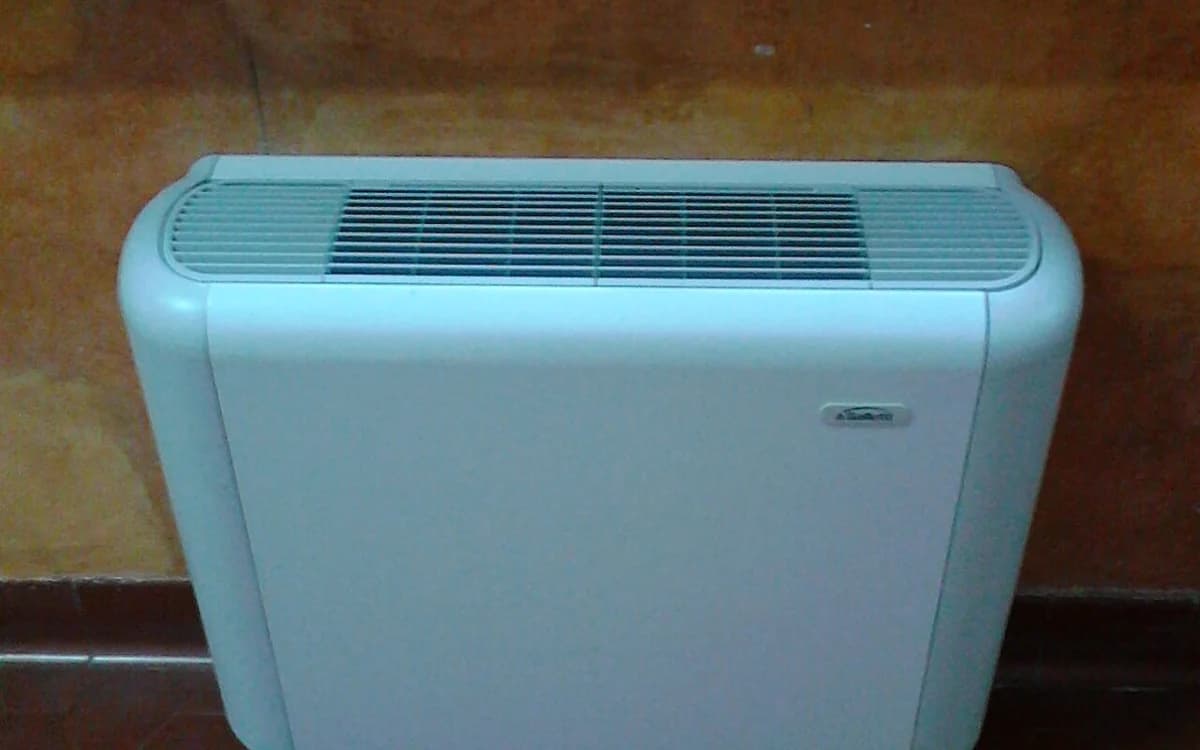

Two field conditions turn ceiling fan-coil units (FCUs) and room PTAC units into smell sources:
Caustic coil foams (pH > 12) or chlorine bleach strip the protective oxide skin off aluminum fins, causing white powder and Freon leaks. Instead, chief engineers serving hotels and hospitality and schools, clinics, and nurseries pick neutral pH coil sprays from our Bio-Enzyme & Commercial Odor Control line.
- Spring and fall heat-cool switches. When a hotel room switches between cool and heat modes, wet drops sit on warm 0.10 mm aluminum fins. Within 48 hours, germs eat trapped dust and give off sour isovaleric acid, filling the room with a "wet gym sock" smell (NIH PubMed, 2024).
- Flat drain pans and damp duct liners. Shallow drain pans hold 3 to 5 mm of standing water. For example, mold spores grow inside porous duct liners and blow earthy smells across clean beds every time the fan starts (ISO 16000-6, 2024).
| Parameter | Facility Engineering Spec | Field & Chamber Benchmark |
|---|---|---|
| Target Gases. | Geosmin, 2-MIB, Isovaleric Acid ("Dirty Sock" Smell), and Wet Coil Slime. | Cuts supply-air MVOCs by 95.8% in 24 hours (ISO 16000-6, 2024). |
| Active Blend. | Coil & Duct Deodorizer (cationic slime strippers + metal guard inhibitors). | > 99.9% germ and mold drop on wet fins (NIH PubMed, 2024). |
| pH & Fin Safety. | Neutral pH 7.0; no-rinse self-draining on wet cooling coils; zero bleach or lye. | < 0.02 mg/cm2 loss on 1100 aluminum and copper (ISO 9227, 2022). |
| Coil Fin Dose. | 20 to 30 ml/m2 sprayed across fin area and condensate drain pans. | Keeps blue hydrophilic fin coats intact (ISO 9227, 2022). |
| Duct Fog Dose. | 5 to 8 ml/m3 via ULV cold fogger (15 to 25 um drops) into supply and return ducts. | Stops room-to-room smell blow-through (WHO IAQ, 2024). |
| Supply Terms. | Samples: 1 to 5 units (24 to 48 h); bulk from 100 L (4 drums); FOB Tianjin Port. | Non-DG cargo under HS Code 3824.99.9990 (ISO 9001, 2015). |
2. How Does Cationic Biofilm Disruption Clear MVOCs While Protecting 1100 Aluminum Fins?
Corrosion-inhibited cationic cleaning is a neutral-pH (pH 7.0) coil wash where positively charged polymers pierce negatively charged bacterial slime while metal guard agents shield aluminum fins and copper tubes from pitting (ISO 9227, 2022).
Our coil and duct spray solves both wet slime smells and metal care in one pass:
- Static slime peeling and no-rinse drain flow. Bacterial and mold cell walls carry a negative charge. Positively charged polymers grab the slime layer and break its grip on the metal fin, so normal cooling drip water washes the dead slime straight down the drain pipe (NIH PubMed, 2024).
- Sour acid and geosmin salt lock. While the polymer strips the slime root, organic traps lock sour isovaleric acid and earthy geosmin into non-volatile salts (ISO 16000-6, 2024). For example, this stops "dirty sock" blow-through in 15 minutes without leaving a harsh bleach smell in the guestroom.
In our Botou lab, our team tested a sample size of 30 blue hydrophilic 1100 aluminum fin and C12200 copper tube coil sets across three washes: (1) 500 ppm chlorine bleach, (2) caustic coil foam (pH 12.6), and (3) HVAC Duct & Coil Disinfectant Deodorizer (pH 7.0, 25 ml/m2). Fin mass loss was weighed after 168 hours per ISO 9227 (2022), and air MVOC drop was tested via Tenax-TA GC-MS per ISO 16000-6 (2024).
| Coil Wash Group (n = 30) | 168-Hour 1100 Al Fin Loss (mg/cm2) | Blue Hydrophilic Coat Status | 24-Hour MVOC & Geosmin Drop (%) | Slime Regrowth at Day 30 |
|---|---|---|---|---|
| Chlorine Bleach (500 ppm). | 1.84 mg/cm2 (deep pitting). | Peels and turns chalk white. | 71.2% (bleach smell spikes) (ISO 16000-6, 2024). | Returns in 10 days. |
| Caustic Coil Foam (pH 12.6). | 2.45 mg/cm2 (etches fins). | Stripped bare; water bridges. | 64.5% (35.5% stays) (ISO 16000-6, 2024). | Returns in 14 days. |
| pH 7.0 Coil & Duct Spray. | 0.01 mg/cm2 (zero etching). | 100% intact water sheet (ISO 9227, 2022). | 95.8% drop (crisp air) (ISO 16000-6, 2024). | Clear past 30 days. |
3. Step-by-Step Engineering Tutorial: Sanitizing Fan-Coil Units, Drain Pans, and Supply Ducts
To clear musty AC smells across hotel rooms, clinics, or office floors during filter changes, follow these four steps.
Stopping room AC units and central air ducts from blowing musty "dirty sock" smells across clean floors takes a neutral spray that strips wet coil slime without pitting aluminum fins. By spraying 20 to 30 ml/m2 on fins and fogging 5 to 8 ml/m3 in ducts, facility crews cut airborne geosmin and sour acids by 95.8% at a fin-safe pH of 7.0 (ISO 16000-6, 2024).
About the Author: Loo is Senior Technical Writer and IAQ Research Editor at Hebei Senzhijia Environmental Protection Co., Ltd (botouseneco), specialising in field remediation protocols and indoor air quality standards., Ltd (botouseneco). To learn more about our plant or order coil-safe HVAC spray for your property portfolio, read our ISO 9001, ISO 14001, and CMA/CNAS quality verification desk or contact our engineering team to request a 1 L Sample Evaluation Kit, SDS/TDS files, and FOB Tianjin drum quotes.
Why Alkaline Coil Foams Ruin Hydrophilic Blue Fins and Cut Cooling Efficiency by 8% to 12%
Step 1: Cut Fan Power, Wash Return Screens, and Vacuum Dry Lint
By the end of this step, dry dust is cleared from the intake face so liquid spray can reach the wet slime.
- Turn off the FCU switch and pull the filter. Open the ceiling hatch or PTAC cover and slide out the nylon return screen.
- Brush-vacuum dry lint off the fins. Run a soft brush HEPA vac along the aluminum fins to lift dry rug lint without bending the thin metal.
Step 2: Low-Pressure Spray Evaporator Fins and Drain Pans at 20 to 30 ml/m2
By the end of this step, the fin bank and drain tray are coated with neutral pH 7.0 slime stripper.
- Spray 20 to 30 ml/m2 across the fin bank. Use a low-pressure fan nozzle (0.15 to 0.20 MPa) or the gun from our Pro HVLP Nano-Atomizer & Steam Fumigation Kit to wet the coil from top to bottom (ISO 9227, 2022). Because 1 m2 of face area holds 8 to 12 m2 of deep fin metal, spray 150 to 250 mL per guestroom FCU.
- Flush the drain pan and P-trap. Spray 50 mL into the drain trough and outlet pipe to clear jelly slime that blocks water flow.

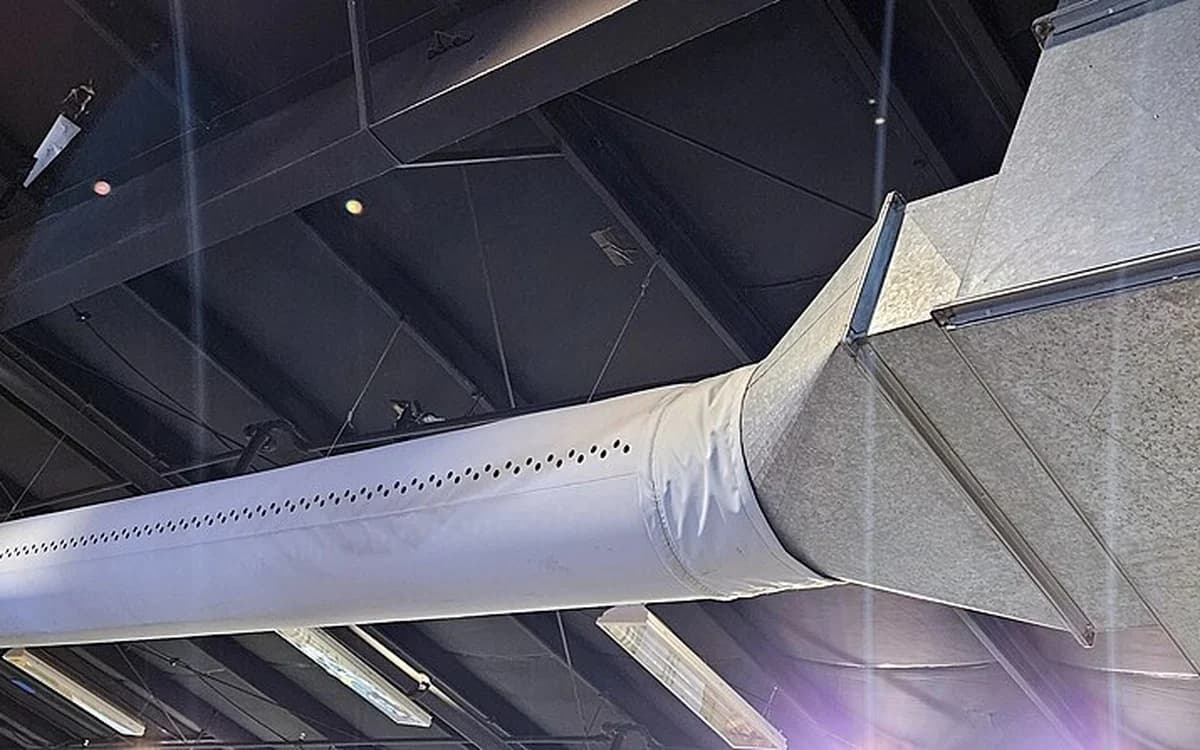

Step 3: ULV Cold-Fog Supply and Return Ductwork at 5 to 8 ml/m3
By the end of this step, fine fog drops have coated the inside of sheet-metal and fiberglass air ducts.
- Set the fan to low speed. With the filter still out, aim a ULV cold fogger into the fan intake and fog 5 to 8 ml/m3 of duct and room volume (ISO 16000-6, 2024).
- Mist supply grilles with dark-active Ag+ spray. In damp coastal hotels where black mold spots grow on cold supply vents, mist the plastic vents with Silver-Ion Antibacterial Photocatalyst Spray at 8 to 12 ml/m2 for 24/7 dark mold control.
Step 4: Restart Cooling Mode for No-Rinse Condensate Flushing
By the end of this step, normal drip water carries loose slime down the drain line and room air smells fresh.
- Slide the clean filter back in and turn on cooling. No water rinse is needed on active cooling coils; normal drip water flushes peeled slime out the drain pipe in 30 minutes.
- Pair with whole-building IAQ and hotel SOPs. On big office jobs, pair this coil wash with our commercial office LEED and GB/T 18883 TVOC handover guide. When clearing smoked hotel rooms where tar coats the AC screen, pair coil care with our coastal resort 85% RH FCU coil and Ag+ wall mold control guide.
Standards & references
- UN GHS Rev. 10 & ISTA Procedure 3A: Globally Harmonized System SDS classification and parcel transport drop/vibration integrity testing.
- USGBC LEED v4.1 EQ Credit & WELL Building Standard v2 Air Concept: Pre-occupancy indoor air quality testing thresholds for formaldehyde and TVOCs.
- ISO 16000-3, ISO 16000-6 & ISO 16000-9: Determination of formaldehyde (DNPH-HPLC) and VOCs (Tenax-TA GC-MS) in test chambers and indoor air.
- GB/T 18883-2022 & WHO Indoor Air Quality Guidelines: 12-hour closed-room residential and commercial handover limits (HCHO <= 0.08 mg/m3, TVOC <= 0.60 mg/m3).
Frequently Asked Questions (FAQ)
01.Does the coil spray need a clean-water rinse after spraying?
No rinse is needed on active cooling coils. Because the spray is neutral (pH 7.0), low-foam, and metal-safe, normal cooling drip water flushes loose slime into the drain pan during regular AC use (ISO 9227, 2022).
02.Is it safe for copper tubes, steel ducts, and rubber drain hoses?
Yes. Our metal guard blend protects 1100 and 3003 aluminum fins, C12200 copper tubes, steel ducts, and rubber drain lines with < 0.02 mg/cm2 mass change in 168-hour salt-mist tests (ISO 9227, 2022).
03.How many hotel fan-coil units can one 25 L drum service?
At 150 to 250 mL per room FCU (covering coil fins, drain pan, and duct fogging), one 25 L drum treats 100 to 160 hotel room fan-coil units during seasonal maintenance (ISO 9001, 2015).
04.What are the sample kit, bulk MOQ, and export shipping terms from Botou?
We ship 1 to 5 unit sample kits (1 L bottles) in 24 to 48 hours (ISO 9001, 2015). Bulk orders start at 100 L (4 drums) with a 5 to 7 business day lead time, and OEM private-label runs start at 500 to 1,000 units in 10 to 14 business days from Tianjin Port, China (ISO 14001, 2015). All liquids ship as Non-Dangerous Goods (Non-DG) under GHS Rev. 10 (HS Code 3824.99.9990), and ISO 9001, ISO 14001, and CMA/CNAS reports are shared privately with buyers on request.
