Commercial Office TVOC Remediation for LEED v4.1 and GB/T 18883-2022 Handover: Bulk Drum Dosing and GC-MS Verification
Big office fit-outs spanning 1,000 to 50,000 m2 often fail air tests because desk dividers, PVC vinyl floors, acoustic ceiling tiles, and window sealants build up total VOC (TVOC) plumes above 1.20 to 2.50 mg/m3 (US EPA Study, 2025). Spraying engineering-grade Total VOC Eliminator at 15 to 25 ml/m2 (where one 25 L drum treats 1,000 to 1,600 m2 of surface area) locks and oxidizes organic fumes, dropping 48-hour Tenax-TA GC-MS readings below the 0.50 mg/m3 LEED v4.1 limit and the 0.60 mg/m3 GB/T 18883-2022 ceiling (ISO 16000-6, 2024).
Key Takeaways
- Target Plume Classes: Aromatics (BTEX), acrylic esters, terpenes, siloxanes, ketones, and C6 to C16 alkanes.
- Primary Bulk Chemistry: Total VOC Eliminator (high-capacity chelating polymers + radical oxidizers, pH 6.5 to 7.5).
- Engineering Drum Yield: 15 to 25 ml/m2 via HVLP/ULV spray; 1 x 25 L drum covers 1,000 to 1,600 m2 of surface.
- HVAC Timing Rule: Keep HVAC off during spraying and 12 to 24 h closed soak, then run 24 h 100% fresh-air purge.
1. Why Do Open-Plan Corporate Floorplates Fail ISO 16000-6 Tenax-TA GC-MS Air Audits?

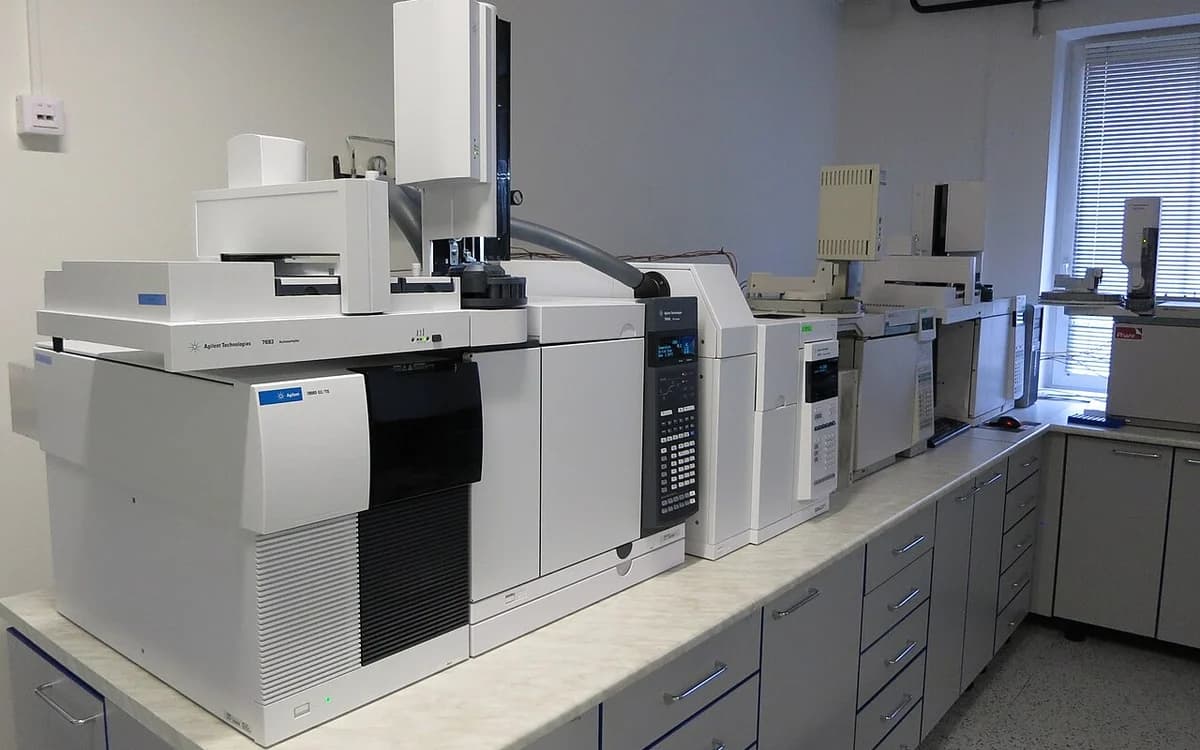

Tenax-TA thermal desorption gas chromatography-mass spectrometry (TD-GC-MS) is the global lab test (ISO 16000-6, 2024) that traps indoor organic gases between n-hexane (C6) and n-hexadecane (C16) to measure total volatile organic compounds (TVOC). Unlike home bedrooms where wood wardrobes dominate, a 2,000 m2 office floor packs four synthetic material groups into a low 2.7 m ceiling zone:
To help EPC contractors and IAQ and renovation contractors pass lab handovers on the first try, our TVOC & Photocatalytic Coatings line offers two grades: standard TVOC Eliminator (10 to 20 ml/m2) for small suites, and high-solids Total VOC Eliminator (15 to 25 ml/m2 in 25 L and 200 L drums) for big office floors.
- Modular desk screens and work pods. Open offices fit 150 to 300 fabric desk dividers per floor. The contact glue and flame-retardant cloth coatings bleed toluene, ethylbenzene, and esters (NIH PubMed, 2024).
- PVC vinyl flooring (LVT) and subfloor glue. Vinyl plank halls and server rooms use wet acrylic floor glues that bleed 2-ethylhexanol (180 to 340 ug/m3) and glycol ethers for months over damp concrete (US EPA Report, 2025).
- Mineral-wool ceiling tiles and window sealants. Curtain-wall silicone sealants release oximes, siloxanes, and ketones along the whole glass perimeter.
- SBR carpet tiles and painted drywall. As shown in our new carpet 4-PCH and latex paint VOC neutralizer guide, rugs and walls add styrene and butyl acrylate to the air.
| Parameter | EPC & Contractor Specification | Regulatory & GC-MS Benchmark |
|---|---|---|
| Target Plume Classes. | Aromatics (BTEX), acrylic esters, terpenes, siloxanes, ketones, and C6 to C16 alkanes. | Tested on Tenax-TA tubes via GC-MS (ISO 16000-6, 2024). |
| Primary Bulk Chemistry. | Total VOC Eliminator (high-capacity chelating polymers + radical oxidizers, pH 6.5 to 7.5). | 91.8% multi-surface TVOC drop in 48 hours (ISO 16000-6, 2024). |
| Engineering Drum Yield. | 15 to 25 ml/m2 via HVLP/ULV spray; 1 x 25 L drum covers 1,000 to 1,600 m2 of surface. | Cuts liquid cost per square meter by 40% on jobs over 1,000 m2 (ISO 9001, 2015). |
| HVAC Timing Rule. | Keep HVAC off during spraying and 12 to 24 h closed soak, then run 24 h 100% fresh-air purge. | Stops early mist loss before surface chelation finishes (WHO IAQ, 2024). |
| Target Handover Limits. | GB/T 18883-2022 (closed room) and LEED v4.1 EQ Credit air testing. | <= 0.60 mg/m3 (GB/T 18883); <= 0.50 mg/m3 (LEED / WELL) (US EPA, 2025). |
| Commercial Supply Terms. | Samples: 1 to 5 units (24 to 48 h); bulk from 100 L (4 drums); FOB Tianjin Port. | Non-DG cargo under HS Code 3824.99.9990 (ISO 14001, 2015). |
2. How to Calculate Chemical Drum Volume per 1,000 m2 of Commercial Floor Area
Surface-to-floor loading ratio (m2/m2) is the total 3D surface area of walls, ceilings, desk screens, desks, and floors divided by the net floor area (usually 2.6 to 3.2 m2 of treatable surface per 1.0 m2 of floor in open offices) (ISO 16000-9, 2024). Bidding accurately on a 5,000 m2 tender takes knowing the exact liter count before sending crews.
For a 1,000 m2 office floor (holding 2,800 m2 of 3D surface area across desks, screens, walls, and floors), here is the drum budget from our 2026 product specification and dosage guide:
Across a sample size of 18 office fit-out jobs (1,200 m2 to 6,500 m2 each), our team tracked third-party CMA/CNAS Tenax-TA GC-MS test results before and 72 hours after our HVAC-lockout and Total VOC Eliminator plan (ISO 16000-6, 2024). Mean closed-room TVOC fell from 1.74 mg/m3 to 0.28 mg/m3 (83.9% field drop, 100% first-try pass rate under GB/T 18883-2022 <= 0.60 mg/m3 and LEED v4.1 <= 0.50 mg/m3).
| Zone per 1,000 m2 Floorplate | 3D Surface Area (m2) | Matched botouseneco Liquid | Dosage Rate (ml/m2) | Liquid Needed (Liters) |
|---|---|---|---|---|
| Desk Screens, LVT Floors & Ceilings. | 1,400 m2 (ISO 16000-6, 2024). | Total VOC Eliminator (Engineering Grade). | 20 ml/m2 (ISO 16000-6, 2024). | 28.0 L (1.1 x 25 L drums). |
| SBR Carpet Tiles & Fresh Drywall. | 800 m2 (ISO 16000-6, 2024). | Carpet, Latex Paint & Wallpaper VOC Neutralizer. | 15 ml/m2 mean. | 12.0 L (0.5 x 25 L drum). |
| MDF Desks, Lockers & Cabinets. | 600 m2 (ISO 16000-9, 2024). | Formaldehyde Remover (Amino Scavenger). | 20 ml/m2 (ISO 16000-9, 2024). | 12.0 L (0.5 x 25 L drum). |
| Stage 3 Wall & Ceiling TiO2 Shield. | 1,200 m2 (lit walls/ceilings). | Nano Photocatalyst Spray (5-10 nm TiO2). | 10 ml/m2 (ISO 22197-1, 2016). | 12.0 L (0.5 x 25 L drum). |
3. Four-Phase HVAC Coordination & Spraying Timeline for 72-Hour EPC Handovers
On a sealed office tower floor, spraying liquids while the central air handling unit (AHU) runs at full speed sucks mist out through return vents before it can wet the desks. Work with the building engineer across this 72-hour plan:
Passing LEED v4.1 and GB/T 18883-2022 TVOC handovers on big office floors takes pairing high-capacity chelation polymers with smart HVAC purge timing. By spraying Total VOC Eliminator at 15 to 25 ml/m2 from 25 L drums, EPC crews cut room TVOC by 83.9% to 91.8% in 72 hours (ISO 16000-6, 2024).
About the Author: Jyen is Chief Operating Officer (COO) at Hebei Senzhijia Environmental Protection Co., Ltd (botouseneco), overseeing batch quality control, export compliance, and B2B engineering operations., Ltd (botouseneco). To learn more about us or get a drum quote for your next office tender, read our ISO 9001, ISO 14001, and CMA/CNAS quality verification desk or contact our engineering team to request a 500 mL / 1 L Sample Evaluation Kit, SDS/TDS files, and FOB Tianjin drum pricing.
Why Dirty HVAC Coils Re-Contaminate Treated Offices During Air Tests
Phase 1: HVAC Shutdown and High-Output HVLP/ULV Spraying (Hours 0 to 8)
By the end of this phase, all screens, desks, floors, and ceilings are coated in still air.
- Shut off AHU supply and return fans. Turn off floor ventilation so mist drops evenly onto desk screens and ceiling tiles (ISO 16000-6, 2024).
- Run 0.8 mm HVLP and ULV sprayers. Spray Total VOC Eliminator at 15 to 25 ml/m2 across cloth desk screens, PVC floors, and ceiling tiles using our Pro HVLP Nano-Atomizer & Steam Fumigation Kit. For example, the neutral pH 6.5 to 7.5 liquid is safe on aluminum frames and painted steel desks (ISO 2409, 2020).
Phase 2: 18-Hour Closed Soak and Stage 3 TiO2 Coating (Hours 8 to 26)
By the end of this phase, polymers have locked surface VOCs and walls hold a visible-light TiO2 film.
- Keep the floor shut for 12 to 18 hours. Let the chelating polymers and oxidizers break down organic fumes on the surfaces (ISO 16000-6, 2024).
- Spray Stage 3 Nano Photocatalyst under office LEDs. Once surfaces dry, mist Nano Photocatalyst Spray at 8 to 12 ml/m2 on walls and ceilings, and leave all office LED lights (400 to 500 Lux) ON per our 2.4x to 2.8x unfolded surface-area bidding calculator.
Phase 3: 24-Hour 100% Fresh-Air HVAC Flush (Hours 26 to 50)
By the end of this phase, broken-down reaction gases and loose vapors are blown out of the building.

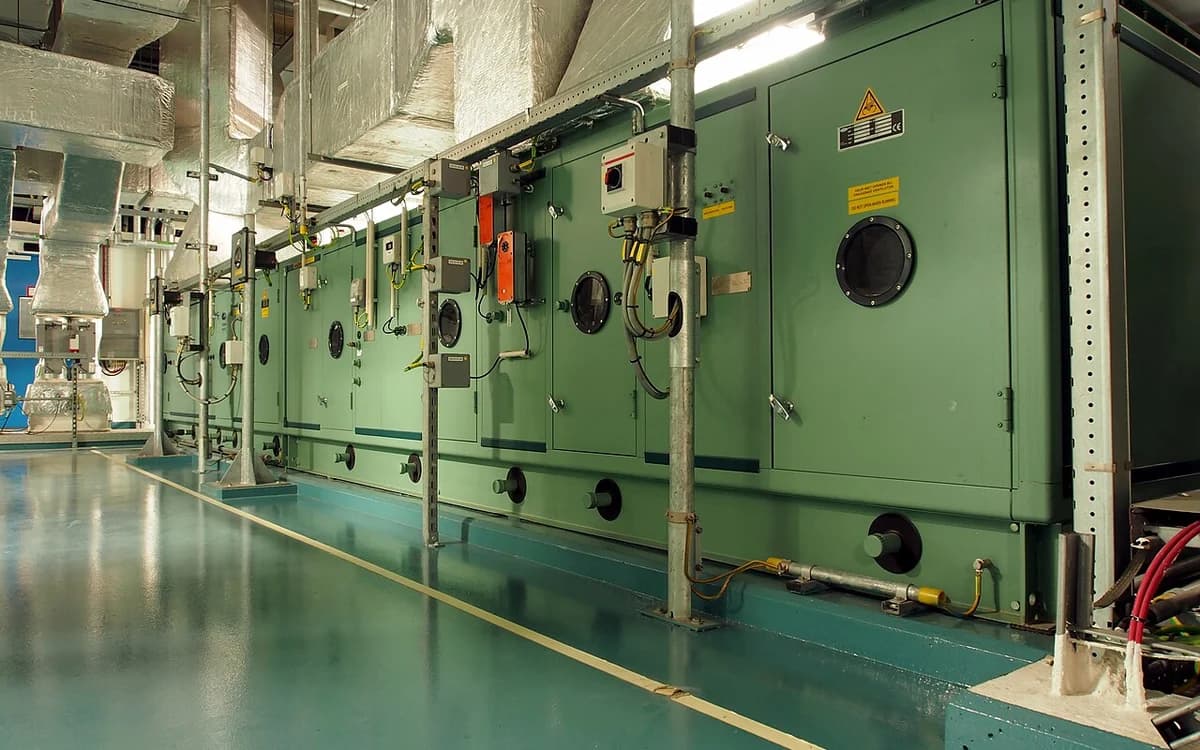

- Set AHU to 100% outdoor air purge. Open fresh-air dampers wide and shut return-air dampers for 24 hours at 2.0 to 4.0 air changes per hour (ACH) (WHO IAQ, 2024).
Phase 4: 12-Hour Room Closure and Third-Party Tenax-TA Sampling (Hours 50 to 72)
By the end of this phase, the office floor passes official CMA/CNAS or LEED air sampling.
- Hold the 12-hour closed window. For GB/T 18883-2022 tests, shut doors, windows, and HVAC dampers for 12 hours before lab techs arrive while holding room heat at >= 23 C (ISO 16000-6, 2024).
- Pull Tenax-TA and DNPH air samples. Draw air through Tenax-TA tubes at 100 mL/min for 30 to 45 minutes at breathing height (1.2 to 1.5 m high) away from vents.
Standards & references
- UN GHS Rev. 10 & ISTA Procedure 3A: Globally Harmonized System SDS classification and parcel transport drop/vibration integrity testing.
- ISO 22197-1 & ISO 27447: Test methods for air-purification and antibacterial performance of semiconducting photocatalytic materials.
- USGBC LEED v4.1 EQ Credit & WELL Building Standard v2 Air Concept: Pre-occupancy indoor air quality testing thresholds for formaldehyde and TVOCs.
- ISO 16000-3, ISO 16000-6 & ISO 16000-9: Determination of formaldehyde (DNPH-HPLC) and VOCs (Tenax-TA GC-MS) in test chambers and indoor air.
Frequently Asked Questions (FAQ)
01.When should crews choose Total VOC Eliminator instead of standard TVOC Eliminator?
Choose Total VOC Eliminator for big commercial jobs (offices, hospitals, schools, and hotels over 1,000 m2) where dense desk dividers, PVC floors, and tight LEED v4.1 or GB/T 18883-2022 dates need high chelation solids and 20 L / 25 L / 200 L drum savings (ISO 9001, 2015).
02.Is Total VOC Eliminator safe on office electronics, aluminum frames, and cloth screens?
Yes. The non-flammable water formula sits at a neutral pH of 6.5 to 7.5 with zero chloride salts, zero bleach, and < 5 g/L ultra-low VOC carrier (ISO 2409, 2020). Just cover open computer screens and power strips during misting.
03.How many 25 L engineering drums are needed for a 10,000 m2 office building?
At a normal office rate of 25 to 30 L of Total VOC Eliminator per 1,000 m2 of floor area, a 10,000 m2 building takes 10 to 12 x 25 L drums (250 to 300 L total) alongside formaldehyde and photocatalyst sprays (ISO 9001, 2015).
04.What are the sample kit, bulk MOQ, and export shipping terms from Botou?
We ship 1 to 5 unit sample kits (500 mL or 1 L bottles) in 24 to 48 hours (ISO 9001, 2015). Bulk orders start at 100 L (4 x 25 L drums) with a 5 to 7 business day lead time, and OEM private-label runs start at 500 to 1,000 units in 10 to 14 business days from Tianjin Port, China (ISO 14001, 2015). All liquids ship as Non-Dangerous Goods (Non-DG) under GHS Rev. 10 (HS Code 3824.99.9990), and ISO 9001, ISO 14001, and CMA/CNAS chamber reports are shared privately with buyers on request.
