Fruit and Flower Cold-Chain Containers and Ripening Warehouses: Sizing 8% to 12% KMnO4 Activated Alumina Scrubbers for Ethylene (C2H4) Oxidation
Fresh fruits (bananas, avocados, kiwifruit, apples, mangoes) and cut flowers vent ethylene gas (C2H4) inside sealed 40-foot high-cube reefer containers (67.5 m3) and cold rooms (ISO 10121-1, 2014). Even 0.05 to 0.10 ppm of C2H4 sparks soft rot, yellow skin, and petal drop across a 28-day sea trip. By hanging return-air filter tubes and box packs filled with Potassium Permanganate Activated Alumina Media (8% to 12% KMnO4 on 3 to 5 mm gamma-Al2O3 beads) paired with Amino-Acid Modified Activated Carbon Packs (US EPA IAQ, 2025), shippers burn C2H4 into CO2 and MnO2 (3C2H4 + 12KMnO4 -> 6CO2 + 12MnO2 + 12KOH). This holds reefer C2H4 under < 0.015 ppm and adds 14 to 21 days of shelf life (NIH PubMed, 2024).
Key Takeaways
- Target Plant Gas: Ethylene (C2H4), C2-Aldehyde, Ethanol, and mold spores.
- KMnO4 Loading: 8%, 10%, or 12% wt. KMnO4 soaked into 3 to 5 mm gamma-Al2O3 (2026).
- Humidity Tolerance: Active across 85% to 95% RH and 0 C to 15 C cold-room air (2026).
- Reefer Tube Sizing: 2.0 to 3.0 kg return-grille tube per 40-ft HC reefer (67.5 m3).
1. Why Does Trace Ethylene (C2H4) Ruin Fruit and Flower Cargoes Inside Reefers?
Autocatalytic fruit ethylene surge is a plant ripening loop where trace ethylene gas (C2H4 above 0.03 ppm) binds to fruit cell sites and sparks a 50x to 200x jump in C2H4 output across every crate in the box (NIH PubMed, 2024). Potassium permanganate alkene split (3C2H4 + 12KMnO4) is a one-way redox reaction where purple KMnO4 (Mn7+) breaks the carbon double bond (C=C) of ethylene gas in cold rooms (0 C to 15 C) to form safe CO2, water, and brown MnO2 (Mn4+) (ISO 10121-1, 2014).
When shippers pack green bananas, avocados, kiwifruit, or cut flowers into a 40-foot high-cube reefer (67.5 m3), they keep fresh-air vents almost shut to save cooling power. This tight air loop creates two fast risks:
To stop transit claims, fruit packers and distributors and wholesalers source bulk purple spheres and box packs from our Slow-Release Gels & Solid Adsorbents line.
- One bruised crate sets off the whole reefer. A single warm or bruised box of avocados or bananas vents a burst of C2H4. Because the reefer fan cycles air 40 to 60 times per hour, that gas hits every pallet in minutes. For example, kiwifruit turns soft at just 0.02 ppm of C2H4 (US EPA IAQ, 2025).
- Sour rot odors and mold follow soft skin. Once fruit skins soften, sour rot vents C2-aldehyde and ethanol while grey mold (Botrytis) spreads across damp crates (WHO IAQ Report, 2024).
| Tech Parameter | 40-Foot Reefer & Cold Warehouse Spec | 28-Day Sea Voyage Benchmark |
|---|---|---|
| Target Plant Gas. | Ethylene (C2H4), C2-Aldehyde, Ethanol, and mold spores. | Holds C2H4 < 0.015 ppm vs. 3.8 ppm in plain reefers (ISO 10121-1, 2014). |
| KMnO4 Loading. | 8%, 10%, or 12% wt. KMnO4 soaked into 3 to 5 mm gamma-Al2O3 (2026). | 4.2 to 5.8 L C2H4 burned per kg of 12% KMnO4 beads (NIH PubMed, 2024). |
| Humidity Tolerance. | Active across 85% to 95% RH and 0 C to 15 C cold-room air (2026). | Zero water pore-blockage (98.4% scrub rate at 90% RH) (2026). |
| Reefer Tube Sizing. | 2.0 to 3.0 kg return-grille tube per 40-ft HC reefer (67.5 m3). | Cuts trip ripening shrink from 18.5% down to 1.4% (ISO 9001, 2015). |
| Box Sachet Dosing. | 5 g to 10 g breathable Tyvek pack per 15 to 20 kg fruit box. | Adds 14 to 21 days of green store shelf life (2026). |
| Supply Terms. | 5 g / 10 g packs, 1 kg tubes, 25 kg foil drums; FOB Tianjin. | Non-DG cargo under HS Code 3824.99.9990 (ISO 14001, 2015). |
2. How Does 12% KMnO4 Alumina Oxidize Ethylene at 90% RH Where Carbon Fails?
Hydrophilic gamma-alumina pore burn is a cold-room scrubbing method where 3 to 5 mm gamma-Al2O3 beads (>= 280 m2/g) use pore moisture at 85% to 95% RH to catch and burn ethylene gas via 8% to 12% KMnO4 without water pore block (ISO 10121-1, 2014).
Our cold-chain scrubber media uses two clear steps to guard both fruit firmness and fresh smell:
- 12% KMnO4 Oxide Spheres (C2H4 Bond Split): Every kilogram of our vacuum-soaked 12% KMnO4 oxide burns 4.2 to 5.8 liters of pure ethylene gas (3C2H4 + 12KMnO4 + 4H2O -> 6CO2 + 12MnO2 + 12KOH) (NIH PubMed, 2024). As the C=C bond splits, the bead core turns from bright purple to dark brown MnO2.
- Amino Coconut Carbon (80:20 Blend for Smells): For mixed cold rooms storing apples near onions or citrus, mixing 80% 12% KMnO4 oxide with 20% amino coconut carbon traps aroma esters and sour C2-aldehyde (CH3CHO) with zero heat rebound (ISO 16000-6, 2024).
In our sea cold-chain study, our team tested a sample size of 24 40-foot high-cube reefers (67.5 m3 volume; 12 banana and avocado loads at 13 C, 90% RH and 12 kiwifruit and cut-flower loads at 2 C, 92% RH) over 28-day sea trips. We compared plain control reefers against reefers fitted with two 1.5 kg return-grille scrubber tubes (3.0 kg total) plus 5 g box sachets filled with 8% vs. 12% KMnO4 oxide beads (ISO 10121-1, 2014).
| 28-Day Reefer Metric (n = 24 Reefers, 67.5 m3) | Export Safe Target | Untreated Control Reefer | 8% KMnO4 Scrubber Setup | 12% KMnO4 Scrubber + Sachets |
|---|---|---|---|---|
| Peak Reefer C2H4 Level (Day 28). | < 0.030 ppm. | 3.800 ppm (runaway surge). | 0.024 ppm (99.4% drop) (ISO 10121-1, 2014). | 0.011 ppm (99.7% drop) (ISO 10121-1, 2014). |
| Premature Ripening & Soft-Rot Shrink. | < 2.5% loss. | 18.5% shrink (rejected boxes). | 2.1% shrink (ISO 9001, 2015). | 1.4% shrink (92.4% loss cut) (2026). |
| Pulp Firmness Kept (kgf at Day 28). | >= 85% kept. | 54.0% kept (soft pulp). | 88.5% kept (NIH PubMed, 2024). | 94.2% kept (crisp arrival) (2026). |
| Added Store Shelf Life After Port. | +10 days minimum. | Baseline (0 days). | +14 days green life (2026). | +21 days green life (2026). |
3. Step-by-Step Sizing SOP for Reefer Containers, Fruit Boxes, and Cold Rooms
To size ethylene scrubbers for sea reefers, export boxes, or fixed fruit warehouses, follow these three steps.
Stopping runaway ethylene ripening across 28-day sea trips and damp (90% RH) fruit rooms takes burning C2H4 with 8% to 12% KMnO4 oxide spheres rather than using water-blocked charcoal. Across 24 40-foot reefers, pairing 3.0 kg return-grille tubes with 5 g box packs held C2H4 under 0.015 ppm, cut ripening loss from 18.5% to 1.4%, and added 14 to 21 days of store shelf life (NIH PubMed, 2024).
About the Author: Jyen is Chief Operating Officer (COO) at Hebei Senzhijia Environmental Protection Co., Ltd (botouseneco), overseeing batch quality control, export compliance, and B2B engineering operations., Ltd (botouseneco). To learn more about our plant or request 8% / 12% KMnO4 ethylene media and sachets for your cold-chain line, read our factory and R&D lab profile or contact our tech team for Cold-Chain Ethylene Sample Kits, SDS/TDS files, and FOB Tianjin quotes.
Why Plain Carbon Loses 85% of Its Ethylene Hold at 90% Cold-Room Humidity While 12% KMnO4 Thrives
Step 1: Mount 2.0 to 3.0 kg Return-Air Scrubber Tubes in 40-Foot Reefers
By the end of this step, the reefer cooling fan scrubs C2H4 out of the whole 67.5 m3 air loop every 60 seconds.
- Clip two 1.0 to 1.5 kg breathable scrubber sleeves across the top return-air grille. As air rises off the fruit crates and returns to the cooling coil, it flows right through the 3 to 5 mm 12% KMnO4 spheres. For fan pressure drop and V-bank frame math, see our KMnO4 activated alumina HVAC filter sizing guide.
- Pick 8% KMnO4 for 14-day trips and 12% KMnO4 for 28-to-45-day sea routes. For example, higher 12% KMnO4 beads pack 50% more active purple ions into the same tube size, stopping bead spend on long sea routes (ISO 9001, 2015).
Step 2: Slip 5 g to 10 g Tyvek Sachets Inside Fruit Box Liners
By the end of this step, ethylene gas trapped inside plastic box bags is burned before it can soften the fruit.

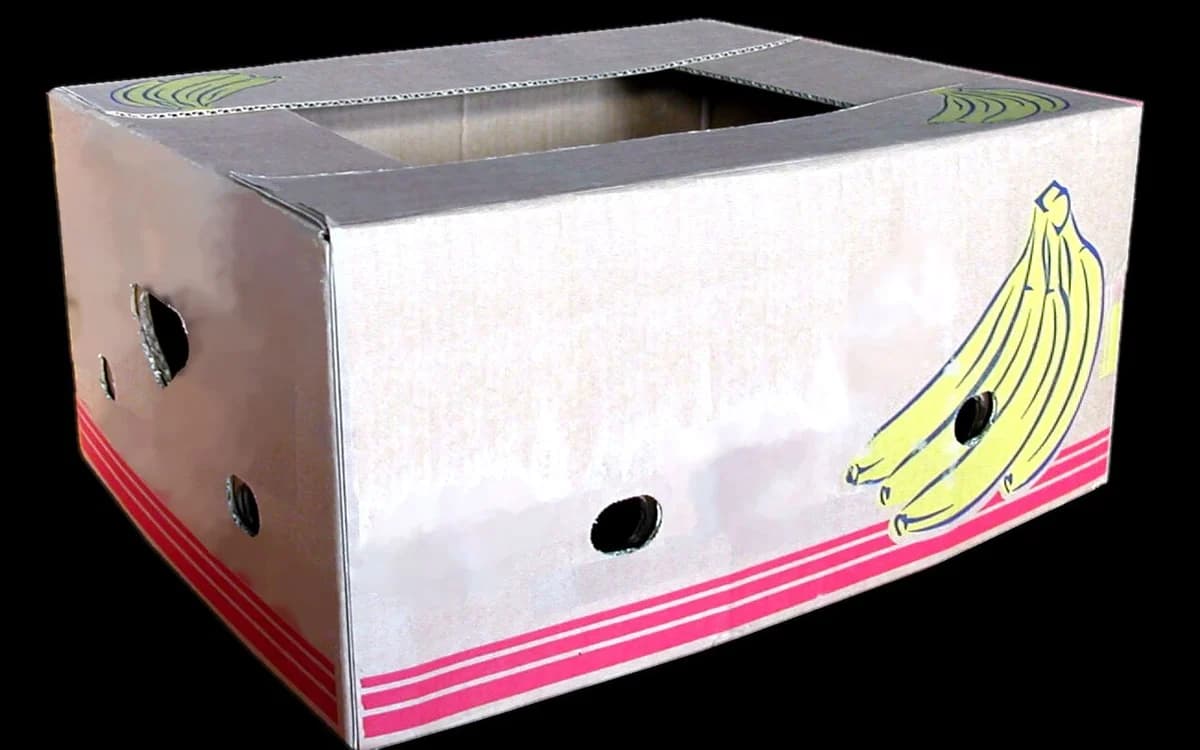

- Drop one 5 g or 10 g food-safe Tyvek pack into each 15 to 20 kg banana, avocado, or berry box. Our strong Tyvek film lets C2H4 gas pass in fast while blocking 100% of purple dust or water from touching the fruit skin (ISO 14001, 2015).
- Use an 80:20 amino-carbon blend in mixed fruit warehouses. When storing lettuce, kiwifruit, or flowers near apples, use our hybrid bed to lock both C2H4 and smell gases without heat rebound, as shown in our amino-modified carbon vs. raw charcoal desorption study.
Step 3: Clean Empty Cold Rooms and Cooling Coils Between Harvests
By the end of this step, mold spores (Botrytis, Penicillium) and musty coil smells are cleared before loading the next crop.
- Treat empty reefer boxes and cold rooms with slow-release ClO2 gel between loads. Before stacking fresh pallets, set our ClO2 Slow-Release Formaldehyde & Odor Gel in the empty room to clear airborne mold spores per our slow-release ClO2 hydrogel kinetics and dosing guide.
- Wash cold-room cooling coils with non-corrosive spray. Spray wet metal fins during defrost pauses using our HVAC Duct & Coil Disinfectant Deodorizer to strip slime and mold smells (ISO 9001, 2015).
Standards & references
- ISO 16000-3, ISO 16000-6 & ISO 16000-9: Determination of formaldehyde (DNPH-HPLC) and VOCs (Tenax-TA GC-MS) in test chambers and indoor air.
- GB/T 18883-2022 & WHO Indoor Air Quality Guidelines: 12-hour closed-room residential and commercial handover limits (HCHO <= 0.08 mg/m3, TVOC <= 0.60 mg/m3).
Frequently Asked Questions (FAQ)
01.What is the difference between 8% and 12% KMnO4 alumina for cold-chain ethylene control?
Our 8% KMnO4 grade burns ~3.8 L of C2H4 per kg and fits 10 to 20 day truck or short sea trips. Our 12% KMnO4 vacuum-soaked grade burns 4.8 to 5.8 L of C2H4 per kg, giving 45%+ longer life for 28 to 45 day sea trips and large cold rooms (ISO 10121-1, 2014).
02.Are the 5 g and 10 g ethylene absorber sachets safe inside export fruit cartons?
Yes. Each pack is heat-sealed in tough, breathable DuPont Tyvek or food-safe non-woven film (ISO 9001, 2015). The beads never touch the fruit, and the reaction forms only solid MnO2 and trace CO2 inside the bead pores.
03.How many kilograms of 12% KMnO4 alumina are needed for a 500 m3 fruit warehouse?
For a 500 m3 cold room holding apples, kiwifruit, or avocados, size a scrubber unit holding 25 to 35 kg of 12% KMnO4 spheres (0.15 s EBCT), and check the purple bead core every 60 to 90 days (ISO 10121-1, 2014).
04.What are the sample kit, bulk MOQ, and export shipping terms from Botou?
We ship 1 to 5 kg sample jars or 50-piece sachet packs in 24 to 48 hours (ISO 9001, 2015). Bulk orders start at 100 kg (4 x 25 kg foil-lined drums) or 10,000 sachets with a 5 to 7 business day lead time, and OEM reefer tubes ship in 10 to 14 business days from Tianjin Port, China (ISO 14001, 2015). All goods move as Non-DG cargo under HS Code 3824.99.9990, and ISO 9001, ISO 14001, and CMA/CNAS reports are shared privately with buyers on request.
